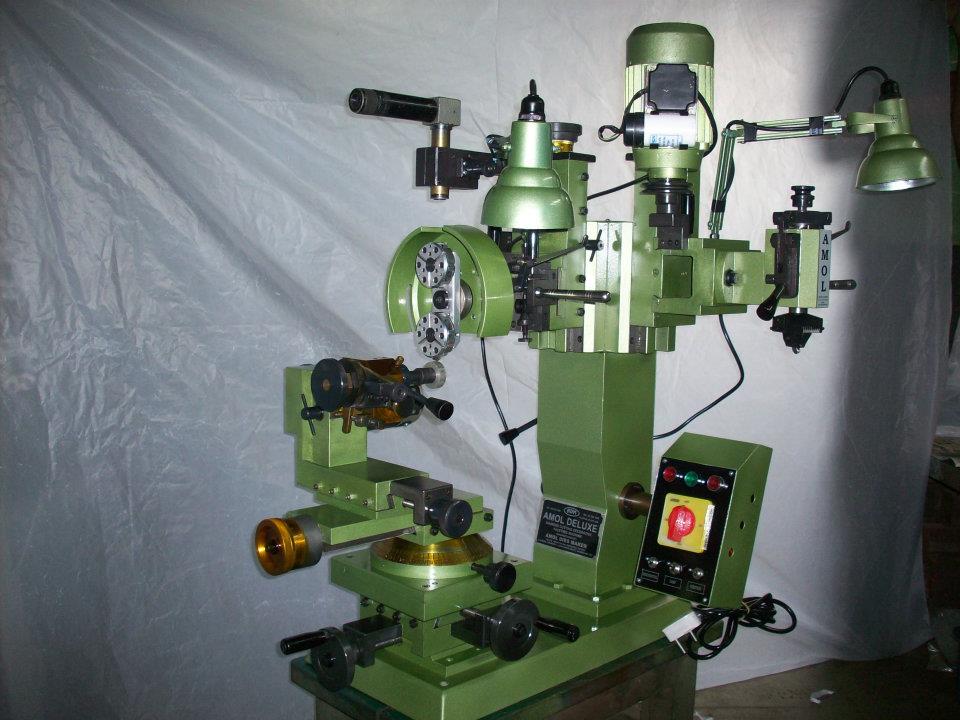

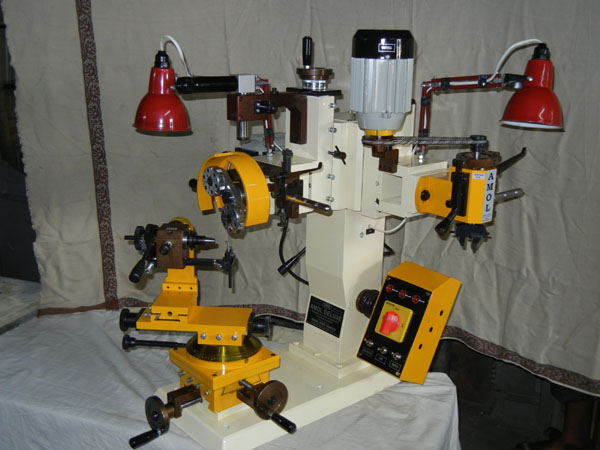

Bangle Ring Diamond Cut Faceting Machine. (Model Delux)
OVERVIEW
This is a self aligning Delux combined horizontal and vertical head machine. It
is versatile yet simple to operate. It produces better work faster and more profitably.
it is rigidly built for long life with interchangeable parts. To cut the designs
on all types of jewelleries namely bangle, 'V' & half round bangles, wedding ring,
ring bands, pendent, chain, ball-beeds, Ear tops, pipe. Can be also used for metal
label, watch dials, all types of gift articles etc.
TECHNICAL SPECIFICATION
|
Heads
|
1 Horizontal & 1 Vertical
|
|
Type of Main Centre
|
Fixed
|
|
Type of Head
|
Revolving
|
|
No. of axis 2
|
(Z - Vertical & Z-1 Vertical for Depth)
|
|
Vertical Z axis
|
Movement Screw
|
|
Vertical Z-1 axis
|
for depth 5.5 mm
|
|
Horizontal Spindle Motor
|
0.17 HP / 2800 RPM
|
|
Horizontal Spindle Speed
|
5600 RPM
|
|
Vertical Spindle Motor
|
0.17 HP / 2800 RPM
|
|
Vertical Spindle Speed
|
6500 RPM
|
|
Shipping dimensions in inches
|
L 30 X W 30 X H 32
|
|
Net / Gross Weight (kgs.)
|
175 / 200
|

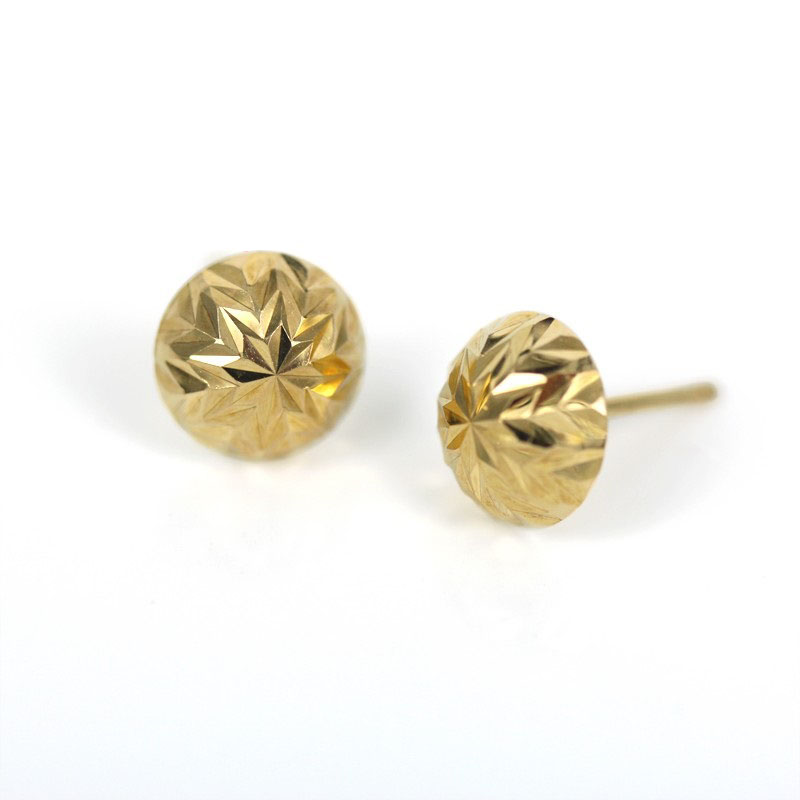

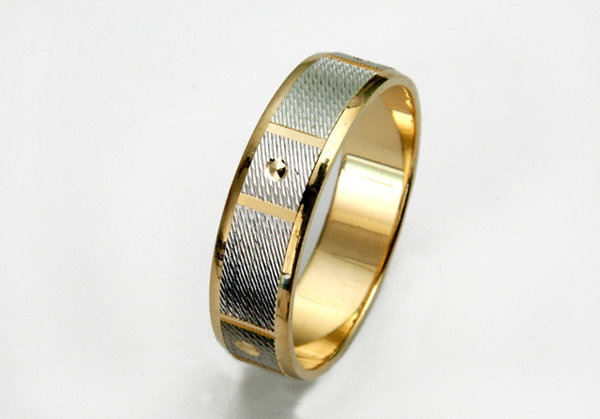

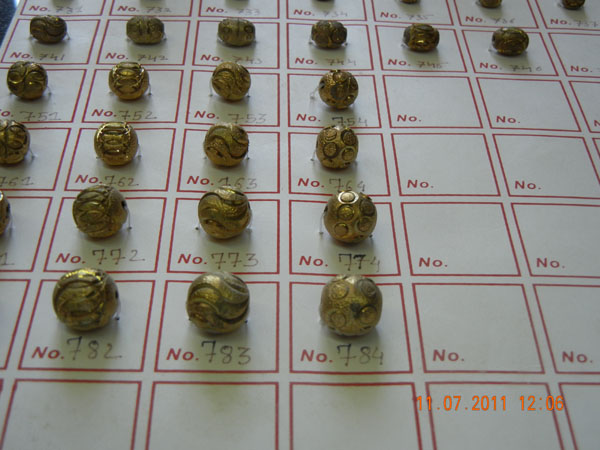

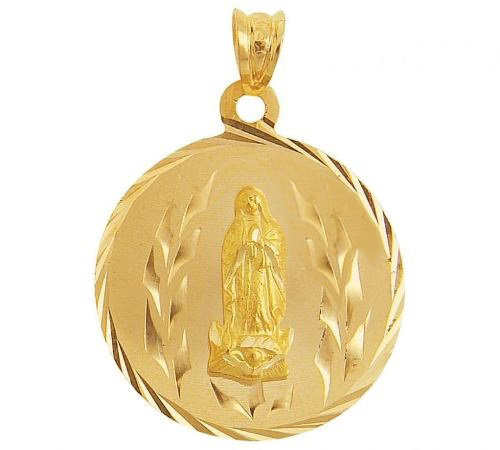

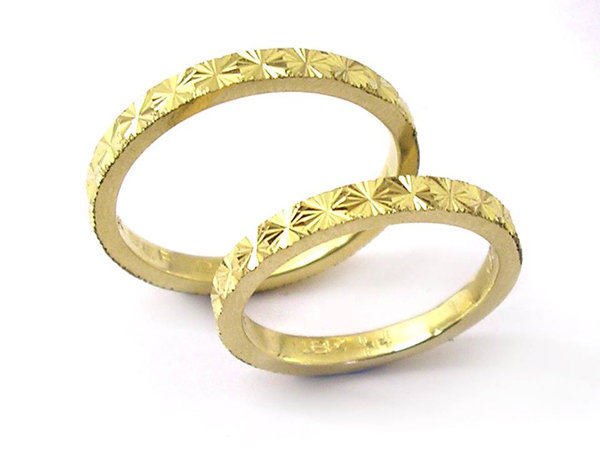

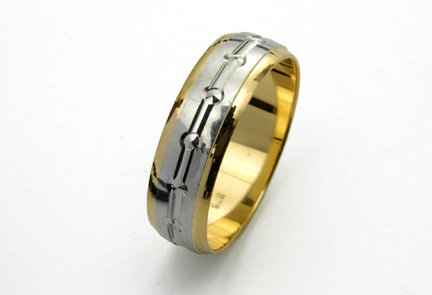

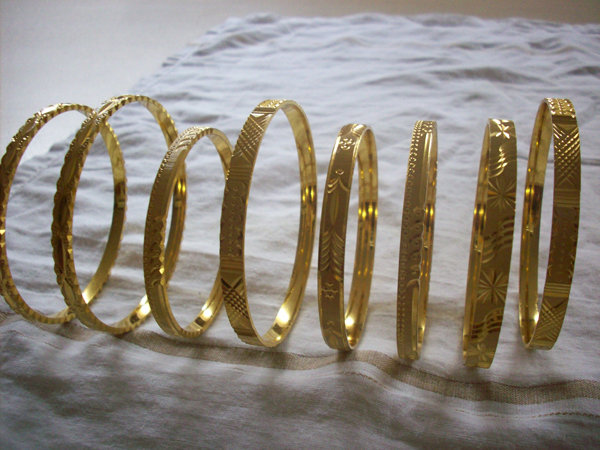

PRODUCT SAMPLES
