Bangle Ring Kanas Radius Diamond Cut Faceting Machine.
OVERVIEW
It is so compact and easy to operate that any design can be done within a minute, precisely and accurately. Now no more Files / Kanas is used for making Kanas bangles and articles as our kanas machine gives more accurate designs using different diamond tools. This saving precious time and money with mass production
Kanas(radius) Type Bangle Faceting Machine is an indigenous machine fully designed & manufactured by us. This machine is suitable for faceting full round & half round Bangles. Various designs such as Damroo, cross cutting [Helical] etc. can be obtained by changing different types of tools [Diamond]. The main attraction of the machine is that you can get helical designs [cross cutting] Right hand & Left hand at different angles & lengths by merely adjusting the screw cam. The machine is simple & easy in operation.
TECHNICAL SPECIFICATION
| Heads | 1 Horizontal
|
|
Type of Main Centre | Fixed
|
|
Type of Head | 1
|
|
No. of axis 2 | (Z - Vertical & Z-1 Vertical for Depth)
|
|
Vertical Z axis | Movement Screw
|
|
Vertical Z-1 axis | for depth 5.5 mm
|
|
Horizontal Spindle Motor | 0.17 HP / 2800 RPM
|
|
Horizontal Spindle Speed | 5600 RPM
|
|
Shipping dimensions in inches | L 28 X W 33 X H 34
|
|
Net / Gross Weight (kgs.) | 175/200
|

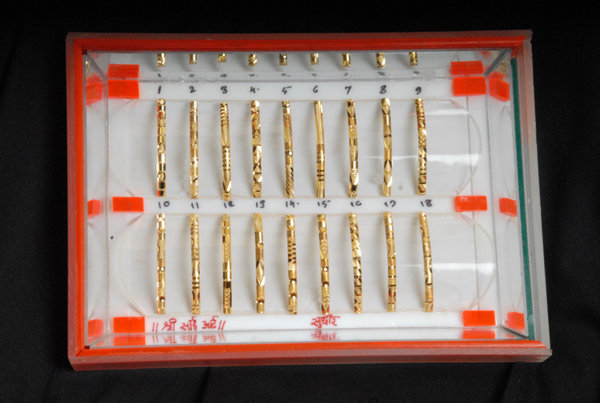

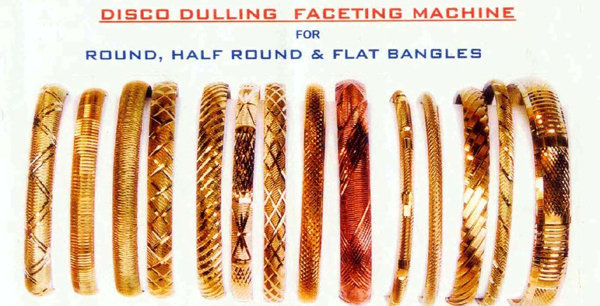

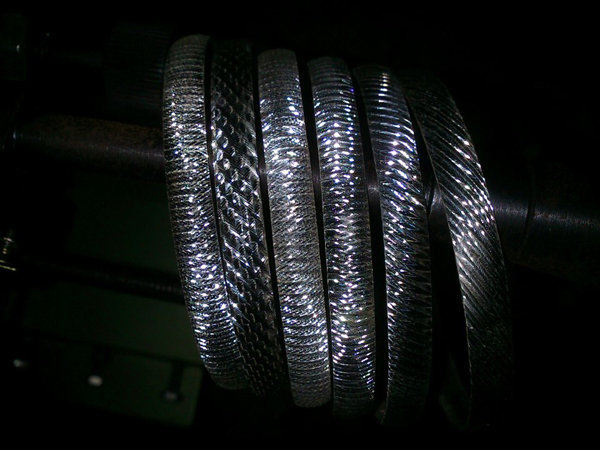

PRODUCT SAMPLES
