Bangle Ring Diamond Cut Faceting Machine. (Model Advance Delux)
OVERVIEW
This is a self
aligning universal combined horizontal and vertical head machine. It is versatile
yet simple to operate. It produces better work faster and more profitably. it is
rigidly built for long life with interchangeable parts. This machine is equipped
with an additional motor fixed to the main divider assembly with separate adjustable
speed controller to control the rotational speed of the ring or bracelet under production.
This machine is also equipped with special vertical head normally supplied only
with our swiss type faceting machines, To cut the designs on all types of jewelleries
namely bangle, 'v' & half round bangles, wedding ring,ring bands, pendent,chain,
ball-beeds, ear tops, pipe. Can be also used for metal label, watch dials, all types
of gift articles etc.
TECHNICAL SPECIFICATION
|
Heads
|
1 Horizontal & 1 Vertical
|
|
Type of Main Centre
|
Fixed
|
|
Type of Head
|
Revolving
|
|
No. of axis 2
|
(Z - Vertical & Z-1 Vertical for Depth)
|
|
Vertical Z axis
|
Movement Screw
|
|
Vertical Z-1 axis
|
for depth 5.5 mm
|
|
Horizontal Spindle Motor
|
0.17 HP / 2800 RPM
|
|
Horizontal Spindle Speed
|
5600 RPM
|
|
Vertical Spindle Motor
|
0.17 HP / 2800 RPM
|
|
Vertical Spindle Speed
|
6500 RPM
|
|
Shipping dimensions in inches
|
L 30 X W 30 X H 32
|
|
Net / Gross Weight (kgs.)
|
200 / 230
|

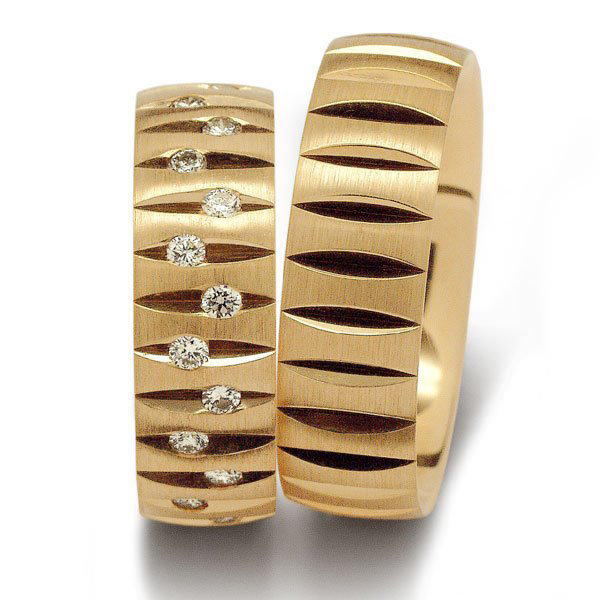

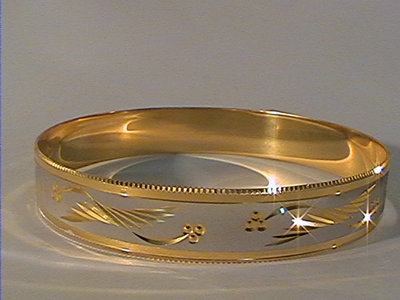

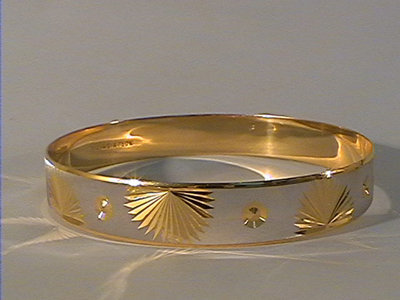

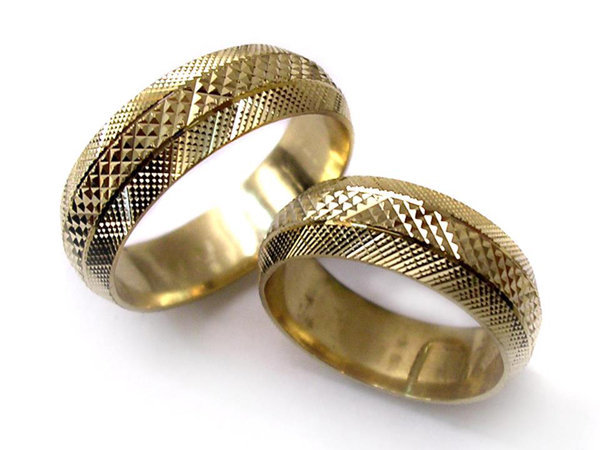

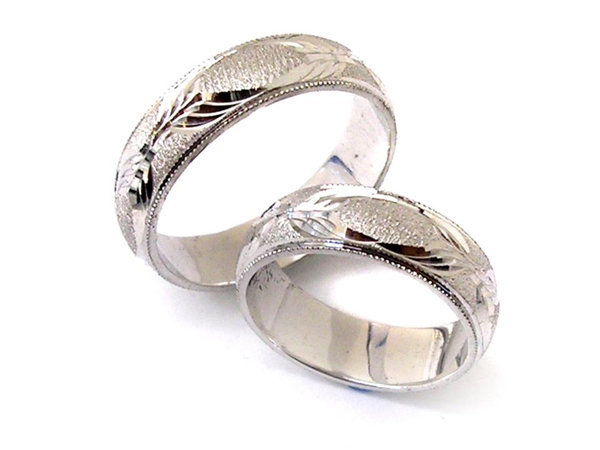

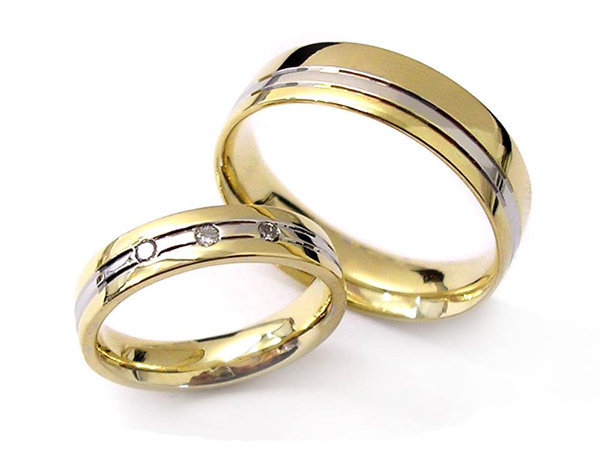

PRODUCT SAMPLES
