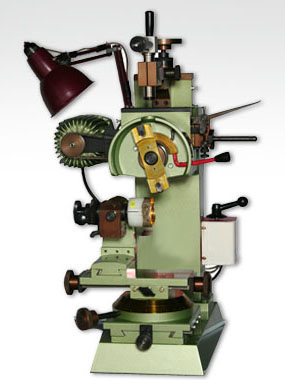

Bangle Ring Diamond Cut Faceting Machine. (Single Head Horizontal / Vertical)
OVERVIEW
This is a simple horizontal head bench model diamond cut faceting machine. It is a versatile easy to use machine and with the use of basic slides, it is possible to design a large variety of items. Its time tested divider assembly is very simple and easy to operate and also allows manual operation for hand dulling of bangles. The vertical head can be fitted in place of horizontal head easily and quickly.
TECHNICAL SPECIFICATION
| Heads | 1 Horizontal & 1 Vertical
|
|
Type of Main Centre | Fixed
|
|
Type of Head | 2
|
|
No. of axis 2 | (Z - Vertical & Z-1 Vertical for Depth)
|
|
Vertical Z axis | Movement Screw
|
|
Vertical Z-1 axis | for depth 5.5 mm
|
|
Horizontal Spindle Motor | 0.17 HP / 2800 RPM
|
|
Horizontal Spindle Speed | 5600 RPM
|
|
Vertical Spindle Motor | 0.17 HP / 2800 RPM
|
|
Vertical Spindle Speed | 6500 RPM
|
|
Shipping dimensions in inches | L 30 X W 30 X H 32
|
|
Net / Gross Weight (kgs.) | 150/175
|

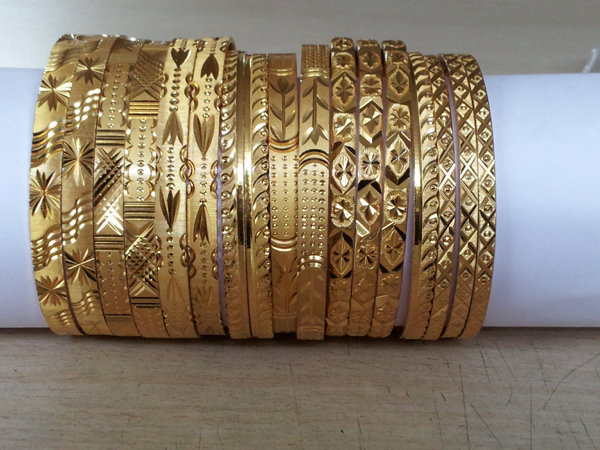

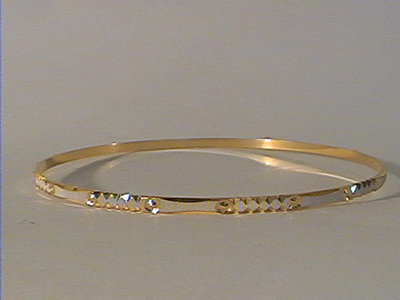

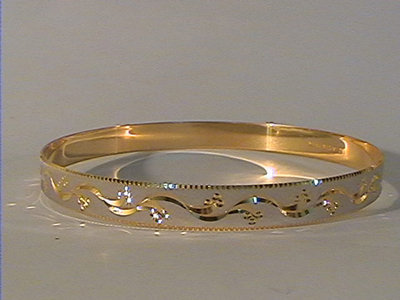

PRODUCT SAMPLES
